Product Summary

The TPS5430DDAR is a 5.5V step-down swift converter. The TPS5430DDAR device is available in a thermally enhanced, easy to use 8-pin SOIC PowerPAD package. TI of the TPS5430DDAR provides evaluation modules and the SWIFT. Designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.

Parametrics

TPS5430DDAR absolute maximum ratings: (1)IO Source current PH: Internally Limited; (2)IO Leakage current PH: 10 mA; (3)TJ Operating virtual junction temperature range: –40 to 125 ℃; (4)TSTG Storage temperature: –65 to 150 ℃; (5)Lead temperature 1,6 mm (1/16-inch) from case for 10 seconds: 300 ℃.

Features

TPS5430DDAR features: (1)Internal Compensation Minimizes External Parts Count; (2)Fixed 500 kHz Switching Frequency for Small Filter Size; (3)Improved Line Regulation and Transient Response by Input Voltage Feed Forward; (4)System Protected by Over Current Limiting and Thermal Shutdown.

Diagrams

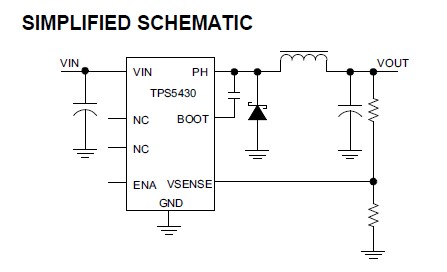

TPS5430DDAR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS5430DDAR
TPS5430DDAR
Texas Instruments
DC/DC Switching Regulators 5.5 to 36V Input 3A Step Dwn Converter
Data Sheet
0-1: $2.70
1-25: $2.47
25-100: $2.24
100-250: $1.57
TPS5430DDARG4
TPS5430DDARG4
Texas Instruments
DC/DC Switching Regulators 5.5 to 36V Input 3A Step Dwn Converter
Data Sheet
0-1960: $1.42
1960-2000: $1.39
2000-2500: $1.39
2500-5000: $1.38
