Product Summary

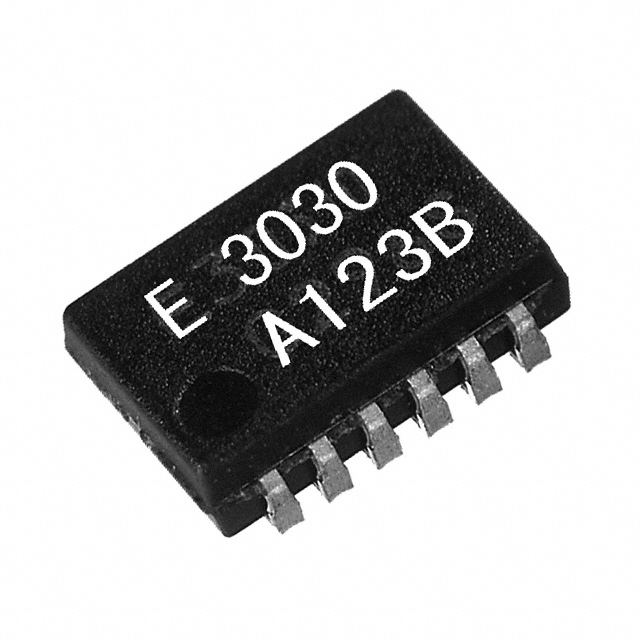

The SG-3030LC is a crystal oscillator.
Parametrics
SG-3030LC absolute maximum ratings: (1)Output frequency range: 32.768 kHz; (2)Supply voltage: 1.5 V to 5.5 V; (3)Interface power supply voltage: 1.5 V to 5.5 V; (4)Storage temperature: -55 to +125℃; (5)Operating temperature: -40 to +85 ℃; (6)Frequency tolerance: 5 ±23 × 10-6; (7)Frequency temperature coefficient: +10 × 10-6/ -120 × 10-6; (8)Current consumption: 2 μA Max.; (9)Symmetry: 45 % to 55 % 1/2; (10)Low output voltage: 0.4 V Max.; (11)Output load condition (CMOS): 15 pF Max.
Features
SG-3030LC features: (1)Built-in 32.768 kHz crystal unit allows adjustment-free efficient operation; (2)Use of C-MOS IC enables reduction of current consumption ; (3)VIO controls swing amplitude.

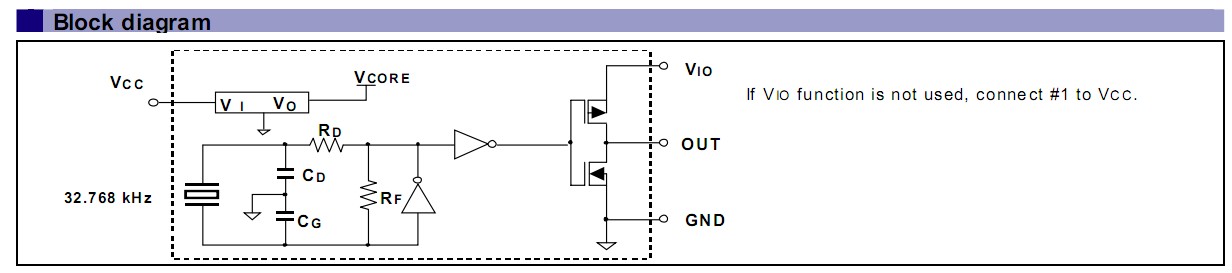

Diagrams
