S1D13700F01A100

Embedded Memory Graphics LCD Controller, 80-TQFP, 2.7 to 5.5V, RoHS Compliant, 32K, 25MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~8.00

PartNumber:: S1D13700F01A100

Brand:: Epson Company - EPSON | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Daniel Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-14

From Other Seller

Part Number:S1D13700F01A100
US $5.00 - 8.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

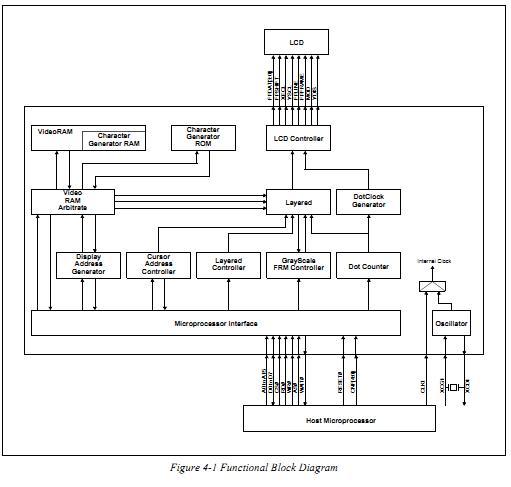

The S1D13700F01A100 is an Embedded Memory Graphics LCD Controller. It can display both text and graphics on an LCD panel. The S1D13700F01A100 allows layered text and graphics, scrolling of the display in any direction, and partitioning of the display into multiple screens. It includes 32K bytes of embedded SRAM display memory which is used to store text, character codes, and bit-mapped graphics. The S1D13700F01A100 handles display controller functions including: transferring data from the controlling microprocessor to the buffer memory, reading memory data, converting data to display pixels, and generating timing signals for the LCD panel. The S1D13700F01A100 is designed with an internal character generator which supports 160, 5x7 pixel characters in internal mask ROM (CGROM) and 64, 8x8 pixel characters in character generator RAM (CGRAM). When the CGROM is not used, up to 256, 8x16 pixel characters are supported in CGRAM.

Parametrics

S1D13700F01A100 absolute maximum ratings: (1)CORE VDD, Supply Voltage: VSS - 0.3 to 4.0 V; (2)IO, VDD Supply Voltage: VSS - 0.3 to 7.0 V; (3)VIN, Input Voltage: VSS - 0.3 to IO VDD + 0.5 V; (4)VOUT, Output Voltage: VSS - 0.3 to IO VDD + 0.5 V; (5)TSTG, Storage Temperature: -65 to 150℃; (6)TSOL, Solder Temperature/Time: 260℃ for 10 sec. max at lead.

Features

S1D13700F01A100 features: (1)Generic Bus (Z80 family) microprocessor interface; (2)MC68K family microprocessor interface; (3)Generic Bus (Z80 family) microprocessor interface; (4)MC68K family microprocessor interface; (5)M6800 family microprocessor interface; (6)8-bit CPU data bus interface; (7)1/2/4 bit-per-pixel color depth support; (8)Text, graphics and combined text/graphics display modes; (9)Three overlapping screens in graphics mode; (10)Programmable cursor control; (11)Smooth horizontal scrolling of all or part of the display in monochrome mode; (12)Smooth vertical scrolling of all or part of the display in all modes.
