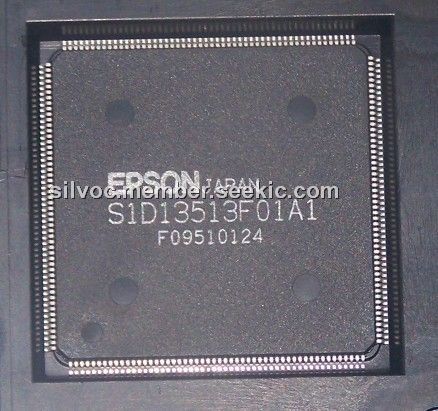

S1D13513F01A100

highly integrated Display Controller, QFP-208, RoHS Compliant, 50 MHz, Serial Host Interface

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.00~14.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $11.00~14.00

PartNumber:: S1D13513F01A100

Brand:: Epson Company - EPSON | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Daniel Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-14

From Other Seller

Part Number:S1D13513F01A100
US $11.00 - 14.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

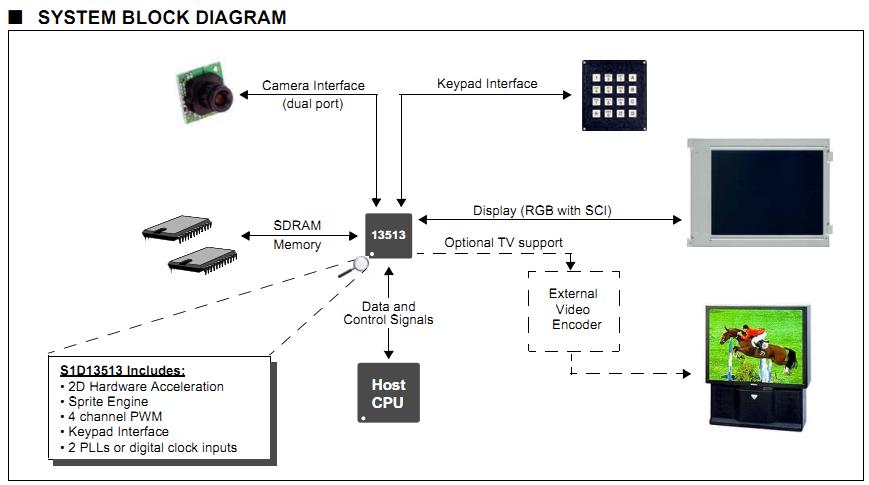

The S1D13513F01A100 is a highly integrated Display Controller capable of outputting to LCD or TV. With the flexibility of an external SDRAM memory interface, this low cost, low power, device supports a wide range of CPUs, panels, and a camera port that can be configured as 2x 8-bit ports. The S1D13513F01A100 feature set and architecture are designed to meet the requirements of embedded systems such as Mobile Communications, Hand-Held PC’s, Office Automation, and Automotive applications.

Parametrics

S1D13513F01A100 absolute maximum ratings: (1)Maximum Clock Frequency: 50 MHz.

Features

S1D13513F01A100 features: (1)Direct and Indirect CPU interfaces; (2)Serial Host Interface; (3)Memory interface for x16 or x32 external SDRAM; (4)Programmable resolutions and color depths; (5)Support for single RGB panel with serial command interface; (6)YUV DIgital Output (YUV 4:2:2) which supports NTSC/PAL TV output via an external video encoder; (7)Clocks can be selected from two embedded PLLs or digital clock inputs; (8)Two built-in Crystal inputs; (9)Dual port Camera interface with resize function; (10)Sprite Engine; (11)2D Hardware Acceleration Engine; (12)Overlay features; (13)Multiple Windows (Layers) with Alpha Blending; (14)Gamma Correction; (15)4 Channel PWM for Backlight control; (16)Keypad Interface with 5x5 matrix support; (17)Software initiated Power Save Mode; (18)Low Operating Voltage; (19)Package: PBGA 256-pin and QFP 208-pin (QFP does not support all features).
