Product Summary
The FC-135 is a kHz range crystal unit with low profile SMD.
Parametrics
FC-135 absolute maximum ratings: (1)Nominal frequency range: 32.768 kHz; (2)Storage temperature: -55 to +125 ℃; (3)Operating temperature: -40 to +85℃; (4)Level of drive: 0.5 μW Max.; (5)Frequency tolerance (standard): ±20 × 10-6; (6)Turnover temperature: +25 ℃ ±5 ; (7)Parabolic coefficient: -0.04 × 10-6/ ℃ 2 Max.; (8)Load capacitance: 7 pF,9 pF,12.5 pF; (9)Motional resistance (ESR): 70 kΩ Max.; (10)Motional capacitance: 3.4 fF Typ.; (11)Shunt capacitance: 1.0 pF Typ.
Features
FC-135 features: (1)Frequency range: 32.768 kHz (32 kHz to 100 kHz); (2)Thickness: 0.9 mm Max.; (3)Overtone order: Fundamental; (4)Applications: Small communications devices.

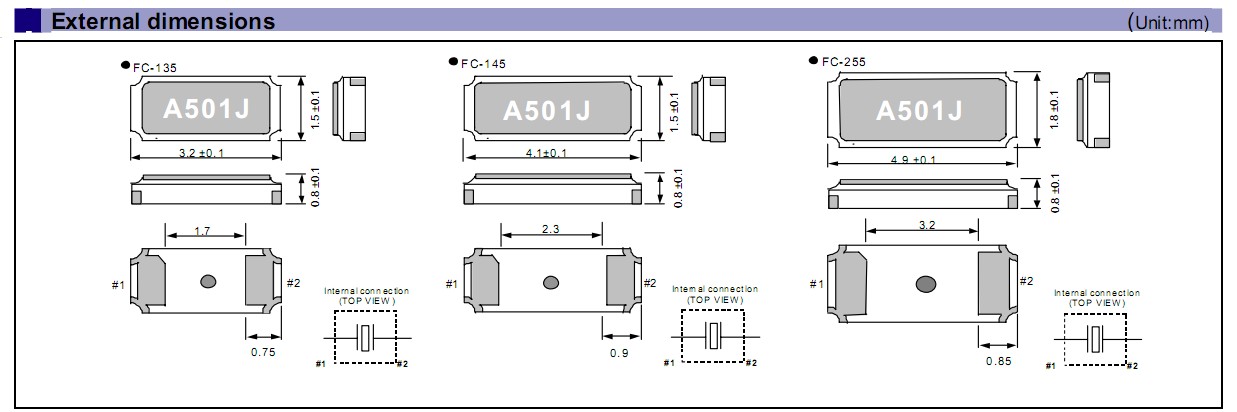

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FC-135 32.7680KA-A3 |
Epson Toyocom |
Crystals 32.768KHz 20ppm 12.5pF -40C -85C |
Data Sheet |
|
|
||||||||||||||
|
FC-135 32.7680KA-AC0 |
Epson Toyocom |
Crystals 32.768KHz 20ppm 9.0pF -40C -85C |
Data Sheet |
|
|
||||||||||||||
|
FC-135 32.7680KA-AC3 |
Epson Toyocom |
Crystals 32.768KHz 20ppm 9.0pF -40C -85C |
Data Sheet |
|
|
||||||||||||||
|
FC-135 32.7680KA-AG0 |
Epson Toyocom |
Crystals 32.768KHz 20ppm 7.0pF -40C +85C |
Data Sheet |
|
|
||||||||||||||
|
FC-135 32.7680KA-AG3 |
Epson Toyocom |
Crystals 32.768KHz 20ppm 7.0pF -40C +85C |
Data Sheet |
|
|
||||||||||||||
|
FC-135 32.7680KA-AG |
Epson Toyocom |
Crystals 32.768KHz 20ppm 7.0pF -40C +85C |
Data Sheet |
|
|
||||||||||||||
|
FC-135 32.7680KA-A0 |
Epson Toyocom |
Crystals 32.768KHz 12.5pF 20ppm -40c +85C |
Data Sheet |
|
|
||||||||||||||
 |
FC-135 32.7680KA-AC 0 |
|
CRYSTAL 32.7680KHZ 9PF SMD |
Data Sheet |
|
|
||||||||||||||
