Product Summary

The MC-306(32.768KHZ 12.5PF 20PPM) is a kHz range crystal unit with SMD.

Parametrics

MC-306(32.768KHZ 12.5PF 20PPM) absolute maximum ratings: (1)Nominal frequency range: 32.768 kHz; (2)Storage temperature: -55 to +125℃; (3)Operating temperature: -40 to +85 ℃; (4)Level of drive: 1.0 μW Max. ; (5)Frequency tolerance (standard): ±20 × 10-6; (6)Turnover temperature: +25 ±5 ℃; (7)Parabolic coefficient: -0.04 × 10-6/ ℃ 2 Max.; (8)Motional resistance (ESR): 50 kΩ Max.

Features

MC-306(32.768KHZ 12.5PF 20PPM) features: (1)Frequency range: 32.768 kHz (20 kHz to 165 kHz); (2)Thicknes: 2.54 mm Max.(MC-306), 3.60 mm Max.(MC-405 / 406); (3)Overtone order: Fundamental /Overtone (307.2 kHz); (4)Applications: Clock and Microcomputer.

Diagrams

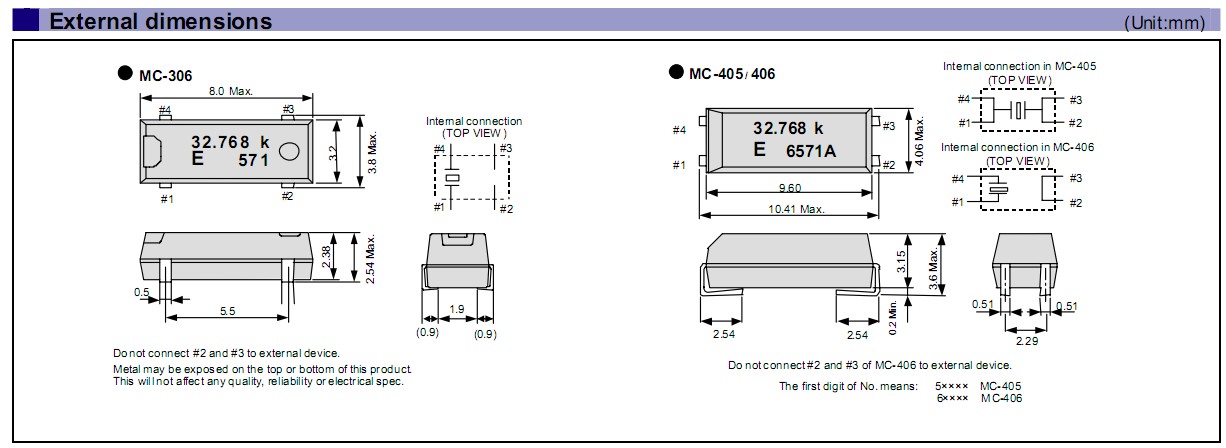

MC-306(32.768KHZ 12.5PF 20PPM) external dimensions

MC-3
MC-3

TERM BARRIER 3CIRC DUAL ROW
Data Sheet
0-10: $4.45
MC-306
MC-306
Other

Data Sheet
Negotiable
MC-306 32.7680K-A0: PURE SN
MC-306 32.7680K-A0: PURE SN
Epson Toyocom
Crystals 32.768KHz 20ppm 12.5pF -40C +85C
Data Sheet
0-1: $0.49
1-10: $0.41
10-50: $0.37
50-100: $0.32
MC-306 32.7680K-A0:ROHS
MC-306 32.7680K-A0:ROHS
Epson Toyocom
Crystals 32.768KHz 12.5pF 20ppm -40C +85C
Data Sheet
0-1: $0.57
1-10: $0.49
10-50: $0.41
50-100: $0.36

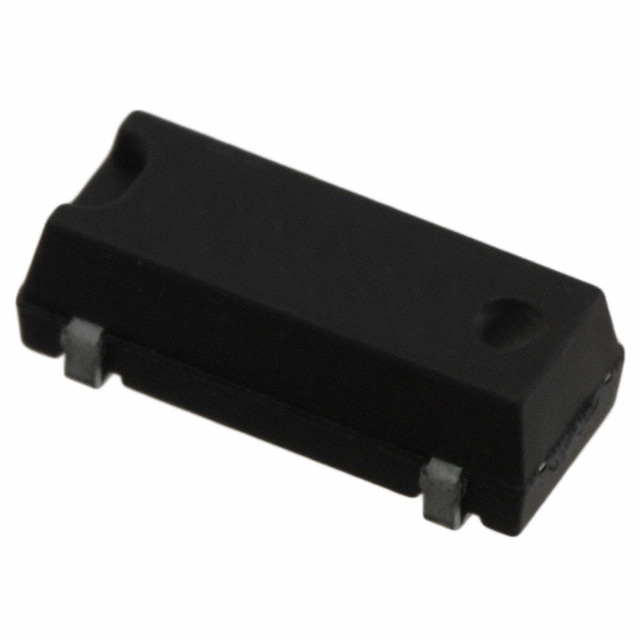

MC-306 32.7680K-A3:ROHS
MC-306 32.7680K-A3:ROHS
Epson Toyocom
Crystals 32.768KHz 20ppm 12.5pF -40C +85C
Data Sheet
0-1: $0.49
1-10: $0.41
10-50: $0.37
50-100: $0.32
100-250: $0.32
MC-306 32.7680K-AC3: ROHS
MC-306 32.7680K-AC3: ROHS
Epson Toyocom
Crystals 32.768KHz 20ppm 12.5pF -40C +85C
Data Sheet
0-1: $0.49
1-10: $0.41
10-50: $0.37
50-100: $0.32
100-250: $0.32
